Wall Mounting Plastic Air Valves
Release time:2020-03-31 10:16
PAV-D





PAV-E





PAV-F

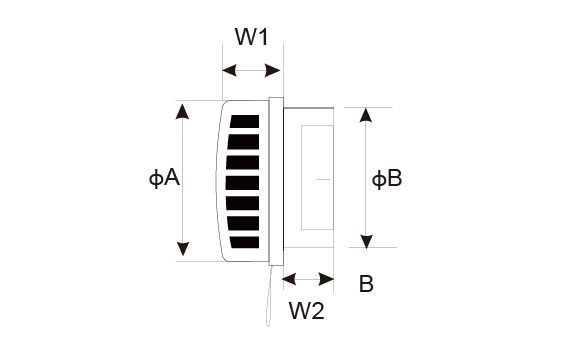

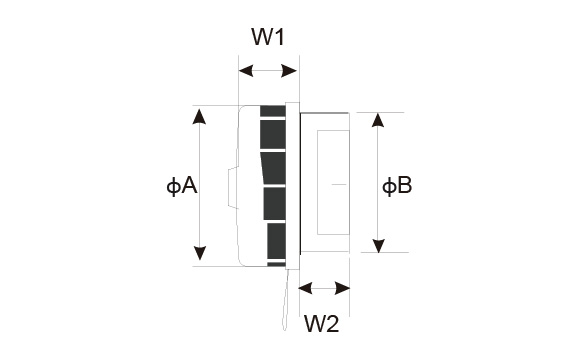

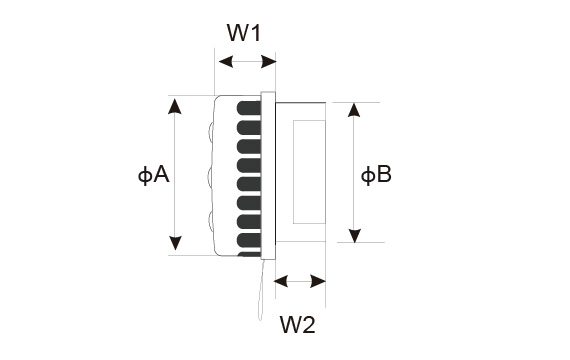

Type ΦA(mm) ΦB(mm) W1(mm) W2(mm)
PAV-D125 168 125 60 57
PAV-E125 168 125 60 57
PAV-F125 168 125 60 57

- Wall mounting
- Thermally insulated disc
- Efficient sound attenuator (size Φ125)
- Washable filter
- Smooth air distribution
- The plugs in the regulation unit can be removed to prevent the valve from closing copletely
- Available sizes Φ 125
- Tube length is available upon request
